DMC21D1UDA-7B

In Stock: 8,794

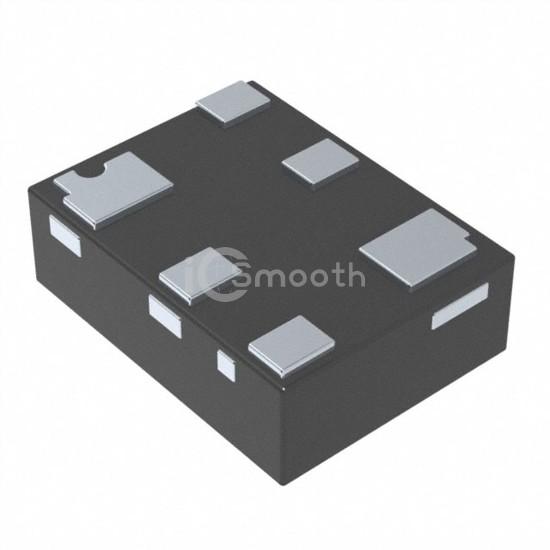

DMC21D1UDA-7B - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMC21D1UDA-7B Diodes Incorporated
DMC21D1UDA-7B

Diodes Incorporated

MOSFET N/P-CH 20V X2DFN0806-6

DMC21D1UDA-7B is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET N/P-CH 20V X2DFN0806-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-SMD, No Lead, power - max 300mW.

Datasheet Request a Quote

In Stock: 8,794

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C455mA (Ta), 328mA (Ta)
Rds On (Max) @ Id, Vgs990mOhm @ 100mA, 4.5V, 1.9Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.41nC @ 4.5V, 0.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds31pF @ 15V, 28.5pF @ 15V
Power - Max300mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, No Lead
Supplier Device PackageX2-DFN0806-6
