DMC2004LPK-7

In Stock: 8,675

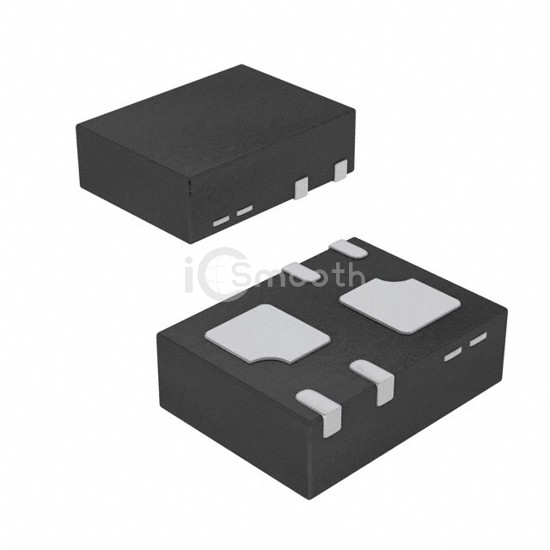

DMC2004LPK-7 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMC2004LPK-7 Diodes Incorporated
DMC2004LPK-7

Diodes Incorporated

MOSFET N/P-CH 20V 6-DFN

DMC2004LPK-7 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET N/P-CH 20V 6-DFN. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 6-SMD, No Lead, power - max 500mW.

Datasheet Request a Quote

In Stock: 8,675

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C750mA, 600mA
Rds On (Max) @ Id, Vgs550mOhm @ 540mA, 4.5V
Vgs(th) (Max) @ Id1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Input Capacitance (Ciss) (Max) @ Vds150pF @ 16V
Power - Max500mW
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-SMD, No Lead
Supplier Device PackageDFN1612-6
