DMC1018UPD-13

In Stock: 4,672

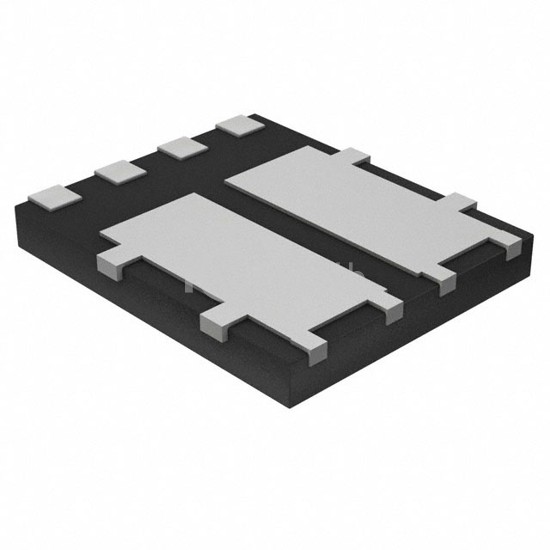

DMC1018UPD-13 - Diodes Incorporated - Transistors - FETs, MOSFETs - Arrays
REF: DMC1018UPD-13 Diodes Incorporated
DMC1018UPD-13

Diodes Incorporated

MOSFET N/P-CH 12V POWERDI5060

DMC1018UPD-13 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. MOSFET N/P-CH 12V POWERDI5060. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 2.3W.

Datasheet Request a Quote

In Stock: 4,672

Specifications

14 parameters
Product StatusActive
FET TypeN and P-Channel
FET FeatureStandard
Drain to Source Voltage (Vdss)12V, 20V
Current - Continuous Drain (Id) @ 25°C9.5A, 6.9A
Rds On (Max) @ Id, Vgs17mOhm @ 11.8A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs30.4nC @ 8V
Input Capacitance (Ciss) (Max) @ Vds1525pF @ 6V
Power - Max2.3W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePowerDI5060-8
