DGTD65T50S1PT

In Stock: 3,687

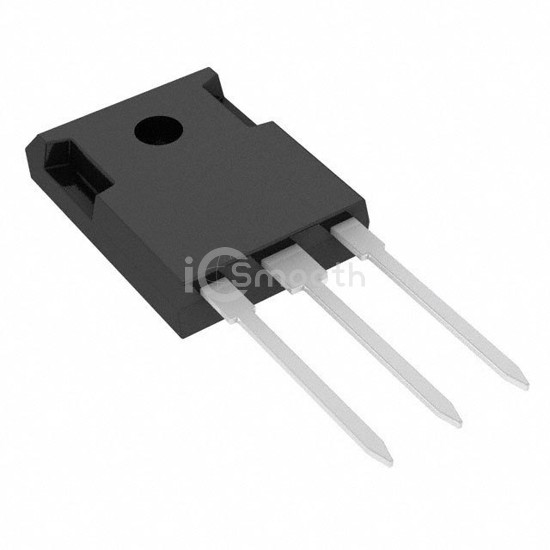

DGTD65T50S1PT - Diodes Incorporated - Transistors - IGBTs - Single
REF: DGTD65T50S1PT Diodes Incorporated
DGTD65T50S1PT

Diodes Incorporated

IGBT 600V-X TO247 TUBE 0.45K

DGTD65T50S1PT is a Transistors - IGBTs - Single manufactured by Diodes Incorporated. IGBT 600V-X TO247 TUBE 0.45K. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 100 A.

Request a Quote

In Stock: 3,687

Specifications

17 parameters
Product StatusLast Time Buy
IGBT TypeField Stop
Voltage - Collector Emitter Breakdown (Max)650 V
Current - Collector (Ic) (Max)100 A
Current - Collector Pulsed (Icm)200 A
Vce(on) (Max) @ Vge, Ic2.4V @ 15V, 50A
Power - Max375 W
Switching Energy770µJ (on), 550µJ (off)
Input TypeStandard
Gate Charge287 nC
Td (on/off) @ 25°C58ns/328ns
Test Condition400V, 50A, 7.9Ohm, 15V
Reverse Recovery Time (trr)80 ns
Operating Temperature-40°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
