Name: DGTD65T15H2TF
Brand: Diodes Incorporated
SKU: DGTD65T15H2TF
Price: 2.02 USD
Availability: InStock

REF: DGTD65T15H2TF Diodes Incorporated

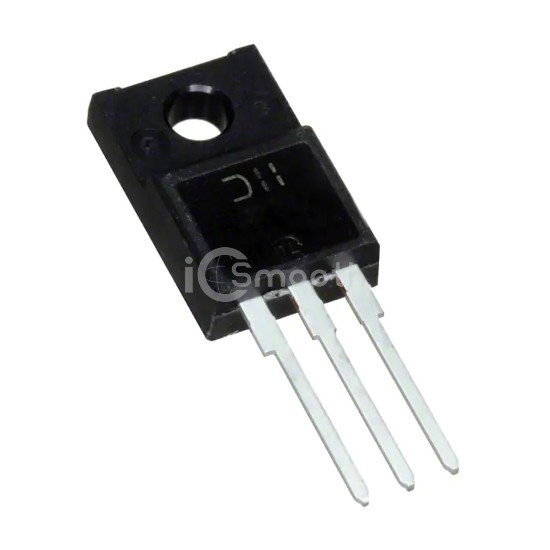

DGTD65T15H2TF

Diodes Incorporated

IGBT600V-XITO-220AB

DGTD65T15H2TF is a Transistors - IGBTs - Single manufactured by Diodes Incorporated. IGBT600V-XITO-220AB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 175°C (TJ), package / case TO-220-3 Full Pack, Isolated Tab, current - collector (ic) (max) 30 A.

Datasheet Request a Quote

In Stock: 1,000

Specifications

17 parameters

Product Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	650 V
Current - Collector (Ic) (Max)	30 A
Current - Collector Pulsed (Icm)	60 A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 15A
Power - Max	48 W
Switching Energy	270µJ (on), 86µJ (off)
Input Type	Standard

Gate Charge	61 nC
Td (on/off) @ 25°C	19ns/128ns
Test Condition	400V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr)	150 ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Supplier Device Package	ITO-220AB
