Name: DGTD120T40S1PT
Brand: Diodes Incorporated
SKU: DGTD120T40S1PT
Price: 6.70 USD
Availability: InStock

REF: DGTD120T40S1PT Diodes Incorporated

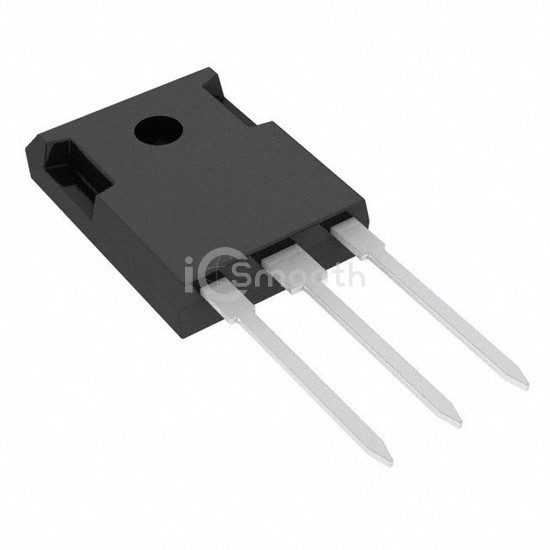

DGTD120T40S1PT

Diodes Incorporated

IGBT 1200V-X TO247 TUBE 0.45K

DGTD120T40S1PT is a Transistors - IGBTs - Single manufactured by Diodes Incorporated. IGBT 1200V-X TO247 TUBE 0.45K. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.

Request a Quote

In Stock: 1,376

Specifications

17 parameters

Product Status	Last Time Buy
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200 V
Current - Collector (Ic) (Max)	80 A
Current - Collector Pulsed (Icm)	160 A
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 40A
Power - Max	357 W
Switching Energy	1.96mJ (on), 540µJ (off)
Input Type	Standard

Gate Charge	341 nC
Td (on/off) @ 25°C	65ns/308ns
Test Condition	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	100 ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247
