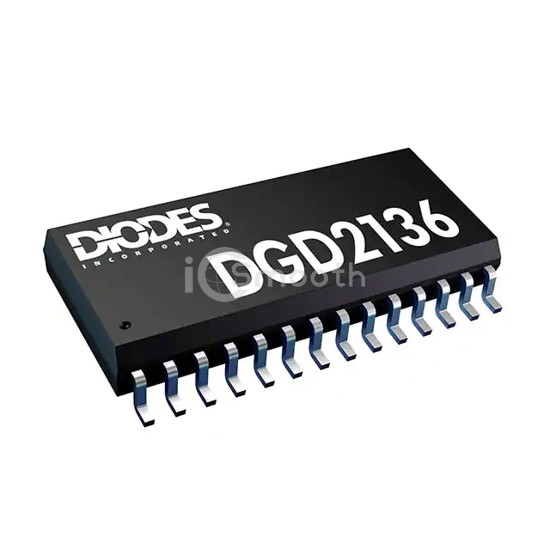

DGD2136S28-13 - Diodes Incorporated - PMIC - Gate Drivers
REF: DGD2136S28-13 Diodes Incorporated
DGD2136S28-13

Diodes Incorporated

IC GATE DRVR HALF-BRIDGE 28SO

DGD2136S28-13 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR HALF-BRIDGE 28SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,279

Tiered Pricing USD
1,500+ $1.5379 —
3,000+ $1.4605 -5%
4,500+ $1.4214 -8% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)90ns, 35ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
