DGD2136MS28-13

In Stock: 6,033

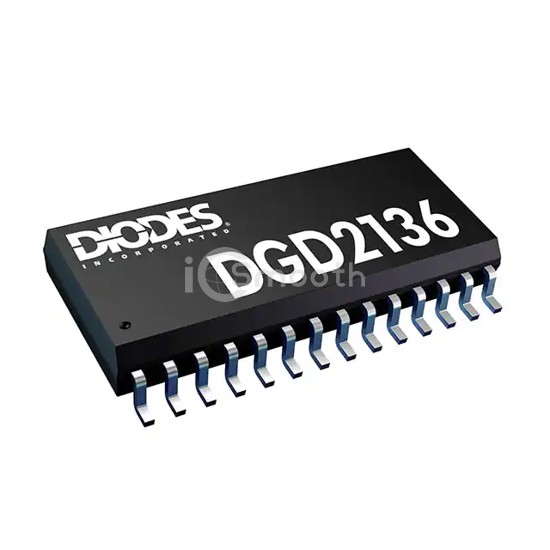

DGD2136MS28-13 - Diodes Incorporated - PMIC - Gate Drivers
REF: DGD2136MS28-13 Diodes Incorporated
DGD2136MS28-13

Diodes Incorporated

IC GATE DRVR HALF-BRIDGE 28SO

DGD2136MS28-13 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRVR HALF-BRIDGE 28SO. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), voltage - supply 10V ~ 20V, package / case 28-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,033

Tiered Pricing USD
1+ $2.2500 —
10+ $1.6690 -26%
25+ $1.5228 -32%
100+ $1.3622 -39%
250+ $1.2856 -43%
500+ $1.2394 -45% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel Type3-Phase
Number of Drivers6
Gate TypeIGBT, N-Channel MOSFET
Voltage - Supply10V ~ 20V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)200mA, 350mA
Input TypeInverting
High Side Voltage - Max (Bootstrap)600 V
Rise / Fall Time (Typ)90ns, 35ns
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case28-SOIC (0.295", 7.50mm Width)
Supplier Device Package28-SO
