DGD0547FN-7

In Stock: 4,195
DGD0547FN-7 - Diodes Incorporated - PMIC - Gate Drivers
REF: DGD0547FN-7 Diodes Incorporated
DGD0547FN-7

Diodes Incorporated

IC GATE DRV HALF-BRDG DFN3030-10

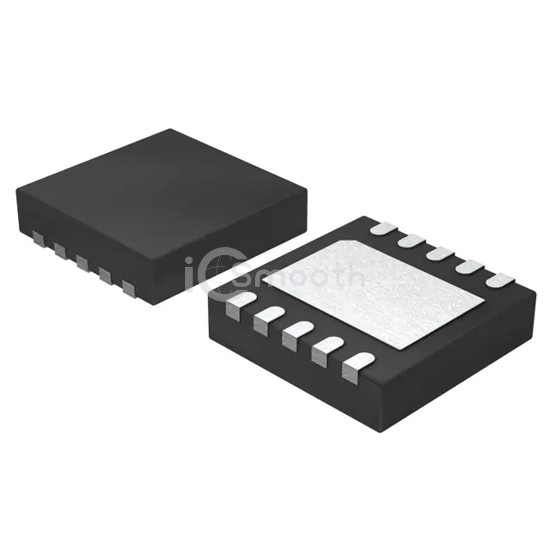

DGD0547FN-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRV HALF-BRDG DFN3030-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 0.3V ~ 60V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,195

Tiered Pricing USD
3,000+ $0.2603 —
6,000+ $0.2422 -7%
9,000+ $0.2330 -11%
15,000+ $0.2228 -14%
21,000+ $0.2167 -17%
30,000+ $0.2109 -19% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply0.3V ~ 60V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)1.5A, 2A
Input TypeCMOS/TTL
High Side Voltage - Max (Bootstrap)50 V
Rise / Fall Time (Typ)16ns, 12ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device PackageW-DFN3030-10
