DGD0506FN-7

In Stock: 1,744
DGD0506FN-7 - Diodes Incorporated - PMIC - Gate Drivers
REF: DGD0506FN-7 Diodes Incorporated
DGD0506FN-7

Diodes Incorporated

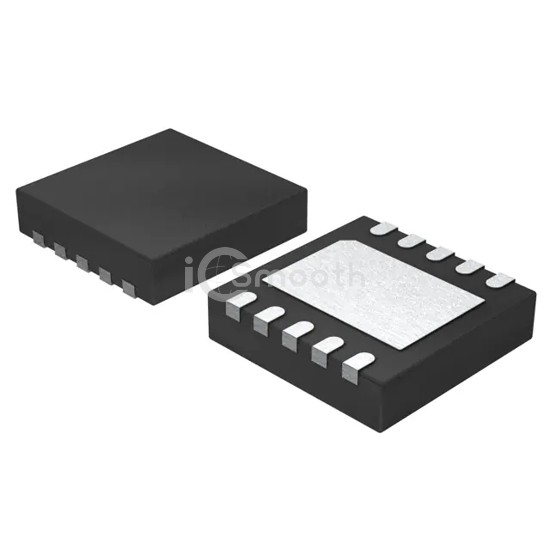

IC GATE DRV HALF-BRDG DFN3030-10

DGD0506FN-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRV HALF-BRDG DFN3030-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 8V ~ 14V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,744

Tiered Pricing USD
3,000+ $0.5373 —
6,000+ $0.5105 -5%
15,000+ $0.4913 -9% BEST

Specifications

15 parameters
Product StatusNot For New Designs
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH1V, 2.5V
Current - Peak Output (Source, Sink)1.5A, 2.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)50 V
Rise / Fall Time (Typ)17ns, 12ns
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device PackageW-DFN3030-10 (Type TH)
