DGD0506AFN-7

In Stock: 4,391

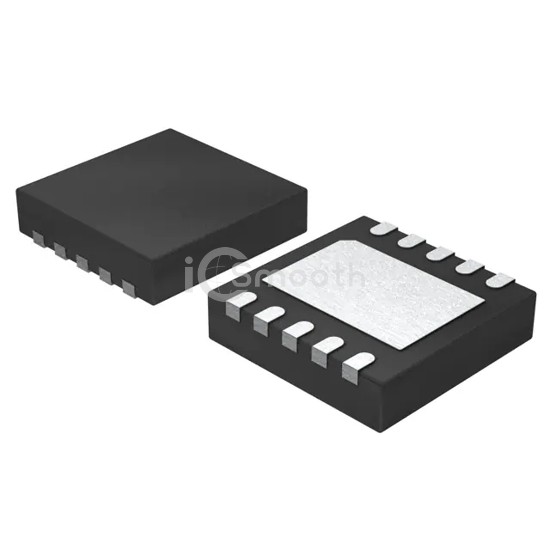

DGD0506AFN-7 - Diodes Incorporated - PMIC - Gate Drivers
REF: DGD0506AFN-7 Diodes Incorporated
DGD0506AFN-7

Diodes Incorporated

IC GATE DRV HALF-BRDG DFN3030-10

DGD0506AFN-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRV HALF-BRDG DFN3030-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 8V ~ 14V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,391

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.4V
Current - Peak Output (Source, Sink)1.5A, 2A
Input TypeCMOS/TTL
High Side Voltage - Max (Bootstrap)50 V
Rise / Fall Time (Typ)17ns, 12ns
Operating Temperature-40°C ~ 125°C (TA)
Mounting TypeSurface Mount
Package / Case10-WFDFN Exposed Pad
Supplier Device PackageW-DFN3030-10
