Name: DGD0504FN-7
Brand: Diodes Incorporated
SKU: DGD0504FN-7
Price: 1.12 USD
Availability: InStock

REF: DGD0504FN-7 Diodes Incorporated

DGD0504FN-7

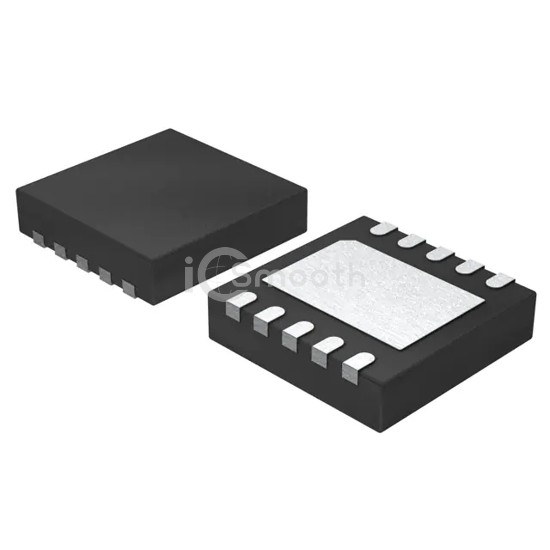

IC GATE DRV HALF-BRDG DFN3030-10

DGD0504FN-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. IC GATE DRV HALF-BRDG DFN3030-10. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10V ~ 20V, package / case 10-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,175

Tiered Pricing USD

1+ $1.1200 —

10+ $0.8050 -28%

25+ $0.7280 -35%

100+ $0.6427 -43%

250+ $0.6021 -46%

500+ $0.5776 -48%

1,000+ $0.5574 -50% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Synchronous
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	10V ~ 20V
Logic Voltage - VIL, VIH	0.8V, 2.5V
Current - Peak Output (Source, Sink)	290mA, 600mA

Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	100 V
Rise / Fall Time (Typ)	70ns, 35ns
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	W-DFN3030-10 (Type TH)
