Name: DGD0280WT-7
Brand: Diodes Incorporated
SKU: DGD0280WT-7
Price: 0.83 USD
Availability: InStock

REF: DGD0280WT-7 Diodes Incorporated

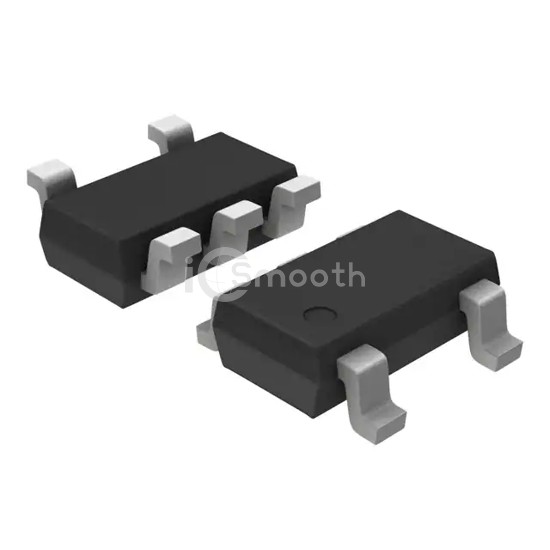

DGD0280WT-7

HV GATE DRIVER SOT25

DGD0280WT-7 is a PMIC - Gate Drivers manufactured by Diodes Incorporated. HV GATE DRIVER SOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case SOT-23-5 Thin, TSOT-23-5.

Datasheet Request a Quote

In Stock: 3,683

Tiered Pricing USD

1+ $0.8300 —

10+ $0.5900 -29%

25+ $0.5308 -36%

100+ $0.4658 -44%

250+ $0.4348 -48%

500+ $0.4162 -50%

1,000+ $0.4008 -52% BEST

Specifications

15 parameters

Product Status	Active
Driven Configuration	Low-Side
Channel Type	Single
Number of Drivers	1
Gate Type	IGBT, N-Channel, P-Channel MOSFET
Voltage - Supply	4.5V ~ 18V
Logic Voltage - VIL, VIH	0.8V, 2V
Current - Peak Output (Source, Sink)	2.5A, 2.8A

Input Type	CMOS, TTL
High Side Voltage - Max (Bootstrap)	-
Rise / Fall Time (Typ)	20ns, 15ns
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package	TSOT-23-5
