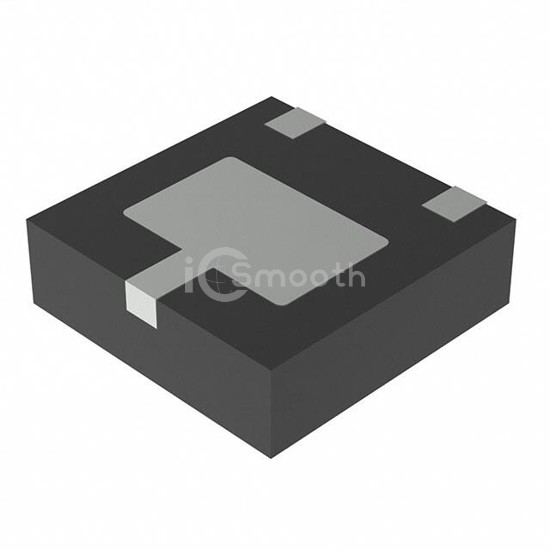

Name: D24V0S1UG3LP20-7
Brand: Diodes Incorporated
SKU: D24V0S1UG3LP20-7
Price: 0.11 USD
Availability: InStock

REF: D24V0S1UG3LP20-7 Diodes Incorporated

D24V0S1UG3LP20-7

Diodes Incorporated

SURGE PROTECTION PP U-DFN2020-3(

D24V0S1UG3LP20-7 is a TVS - Diodes manufactured by Diodes Incorporated. SURGE PROTECTION PP U-DFN2020-3(. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,219

Tiered Pricing USD

3,000+ $0.1125 —

6,000+ $0.1023 -9%

9,000+ $0.0971 -14%

15,000+ $0.0913 -19%

21,000+ $0.0878 -22%

30,000+ $0.0845 -25%

75,000+ $0.0805 -28% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	25V
Voltage - Clamping (Max) @ Ipp	32V
Current - Peak Pulse (10/1000µs)	200A (8/20µs)

Power - Peak Pulse	5680W (5.68kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	630pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN Exposed Pad
Supplier Device Package	U-DFN2020-3 (Type C)
