Name: D24V0L1B2LPSQ-7B
Brand: Diodes Incorporated
SKU: D24V0L1B2LPSQ-7B
Price: 0.33 USD
Availability: InStock

REF: D24V0L1B2LPSQ-7B Diodes Incorporated

D24V0L1B2LPSQ-7B

Diodes Incorporated

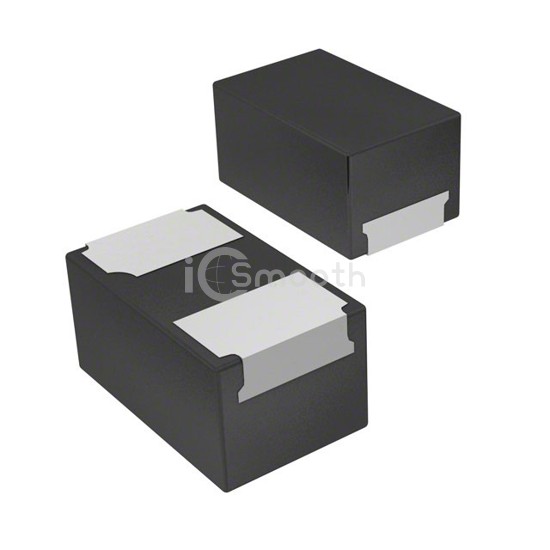

TVS DIODE 24VWM 46VC DFN1006-2

D24V0L1B2LPSQ-7B is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 24VWM 46VC DFN1006-2. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 0402 (1006 Metric).

Datasheet Request a Quote

In Stock: 91,425

Tiered Pricing USD

1+ $0.3300 —

10+ $0.2210 -33%

100+ $0.0930 -72%

500+ $0.0890 -73%

1,000+ $0.0840 -75%

2,000+ $0.0765 -77%

5,000+ $0.0690 -79% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	1
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	26V
Voltage - Clamping (Max) @ Ipp	46V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	90W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	6pF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	0402 (1006 Metric)
Supplier Device Package	X1-DFN1006-2
