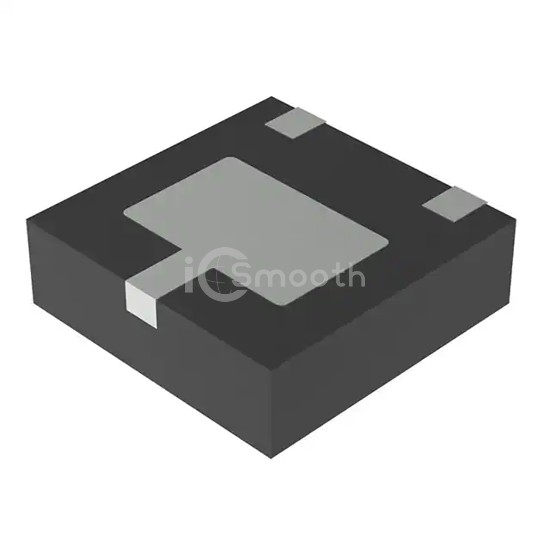

Name: D22V0S1U3LP20-7
Brand: Diodes Incorporated
SKU: D22V0S1U3LP20-7
Price: 0.46 USD
Availability: InStock

REF: D22V0S1U3LP20-7 Diodes Incorporated

D22V0S1U3LP20-7

Diodes Incorporated

TVS DIODE 22VWM 35.6VC 3DFN

D22V0S1U3LP20-7 is a TVS - Diodes manufactured by Diodes Incorporated. TVS DIODE 22VWM 35.6VC 3DFN. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 3-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,890

Tiered Pricing USD

1+ $0.4600 —

10+ $0.3080 -33%

100+ $0.2090 -55%

500+ $0.1630 -65%

1,000+ $0.1450 -68% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	22V (Max)
Voltage - Breakdown (Min)	24.4V
Voltage - Clamping (Max) @ Ipp	35.6V
Current - Peak Pulse (10/1000µs)	9A

Power - Peak Pulse	4000W (4kW)
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN Exposed Pad
Supplier Device Package	U-DFN2020-3 (Type C)
