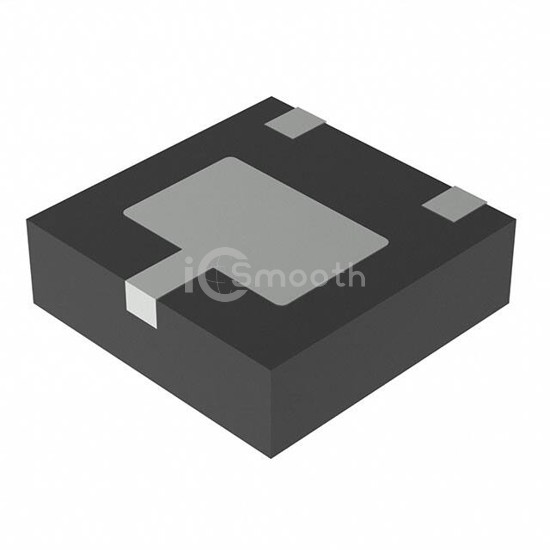

Name: D10V0S1U3LP20-7
Brand: Diodes Incorporated
SKU: D10V0S1U3LP20-7
Price: 0.12 USD
Availability: InStock

REF: D10V0S1U3LP20-7 Diodes Incorporated

D10V0S1U3LP20-7

Diodes Incorporated

SURGE PROTECTION PP U-DFN2020-3

D10V0S1U3LP20-7 is a TVS - Diodes manufactured by Diodes Incorporated. SURGE PROTECTION PP U-DFN2020-3. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 3-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 8,807

Tiered Pricing USD

3,000+ $0.1243 —

6,000+ $0.1132 -9%

9,000+ $0.1076 -13%

15,000+ $0.1013 -19%

21,000+ $0.0975 -22%

30,000+ $0.0939 -24%

75,000+ $0.0910 -27% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	10V (Max)
Voltage - Breakdown (Min)	11.1V
Voltage - Clamping (Max) @ Ipp	18.1V
Current - Peak Pulse (10/1000µs)	18A

Power - Peak Pulse	320W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	1.43nF @ 1MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN Exposed Pad
Supplier Device Package	U-DFN2020-3 (Type C)
