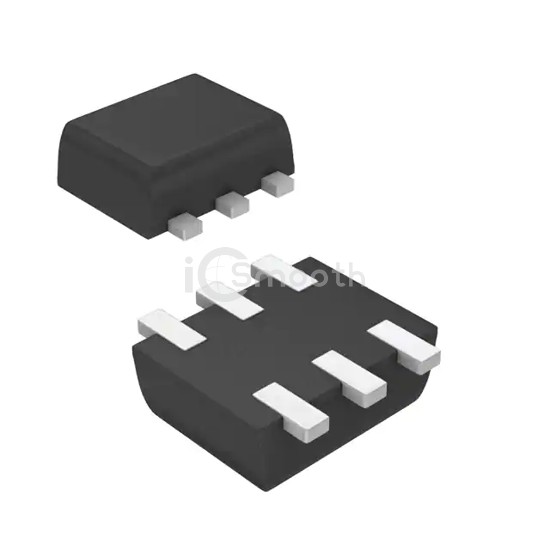

Name: BSS84V-7-79
Brand: Diodes Incorporated
SKU: BSS84V-7-79
Availability: InStock

REF: BSS84V-7-79 Diodes Incorporated

BSS84V-7-79

DIODE

BSS84V-7-79 is a Transistors - FETs, MOSFETs - Arrays manufactured by Diodes Incorporated. DIODE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-563, SOT-666, power - max 150mW (Ta).

Request a Quote

In Stock: 4,607

Specifications

14 parameters

Product Status	Obsolete
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25°C	130mA (Ta)
Rds On (Max) @ Id, Vgs	10Ohm @ 100mA, 5V
Vgs(th) (Max) @ Id	2V @ 1mA

Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	45pF @ 25V
Power - Max	150mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-563, SOT-666
Supplier Device Package	SOT-563
