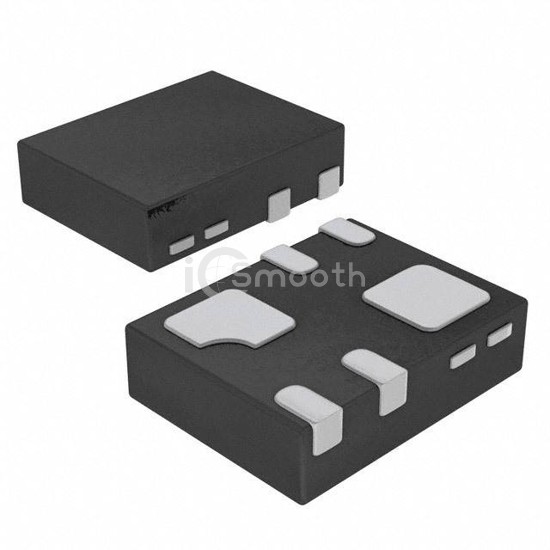

Name: BC847CDLP-7
Brand: Diodes Incorporated
SKU: BC847CDLP-7
Price: 0.39 USD
Availability: InStock

REF: BC847CDLP-7 Diodes Incorporated

BC847CDLP-7

TRANS 2NPN 45V 0.1A 6DFN

BC847CDLP-7 is a Transistors - Bipolar (BJT) - Arrays manufactured by Diodes Incorporated. TRANS 2NPN 45V 0.1A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C (TJ), package / case 6-XFDFN Exposed Pad, current - collector (ic) (max) 100mA.

Datasheet Request a Quote

In Stock: 1,201

Specifications

13 parameters

Product Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V

Power - Max	350mW
Frequency - Transition	100MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	X2-DFN1310-6 (Type B)
