Name: AZ1117S-ADJTRE1
Brand: Diodes Incorporated
SKU: AZ1117S-ADJTRE1
Price: 0.43 USD
Availability: InStock

REF: AZ1117S-ADJTRE1 Diodes Incorporated

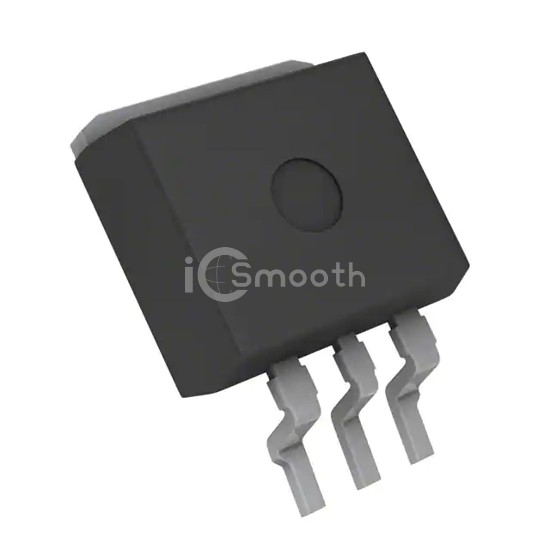

AZ1117S-ADJTRE1

Diodes Incorporated

IC REG LIN POS ADJ 1.25A TO263

AZ1117S-ADJTRE1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LIN POS ADJ 1.25A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - output 1.25A.

Datasheet Request a Quote

In Stock: 3,617

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	13.75V
Voltage Dropout (Max)	1.25V @ 1A
Current - Output	1.25A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	75dB (120Hz)
Control Features	-
Protection Features	Thermal Shutdown
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package	TO-263
