Name: AZ1085S-ADJTRG1
Brand: Diodes Incorporated
SKU: AZ1085S-ADJTRG1
Price: 1.09 USD
Availability: InStock

REF: AZ1085S-ADJTRG1 Diodes Incorporated

AZ1085S-ADJTRG1

Diodes Incorporated

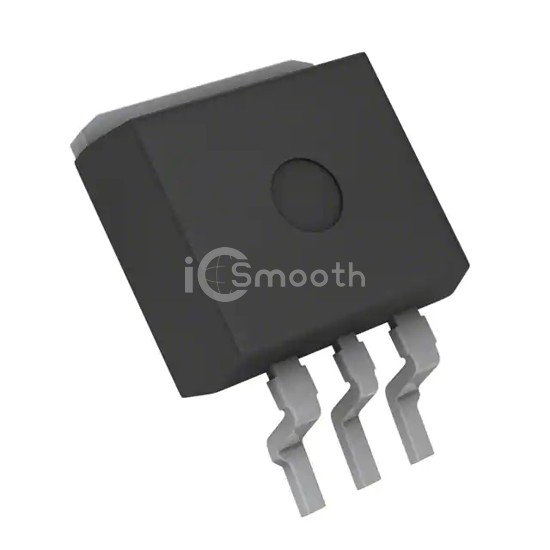

IC REG LINEAR POS ADJ 3A TO263

AZ1085S-ADJTRG1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 3A TO263. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - output 3A.

Datasheet Request a Quote

In Stock: 2,033

Tiered Pricing USD

800+ $1.0863 —

1,600+ $1.0181 -6%

2,400+ $0.9837 -9%

4,000+ $0.9453 -13%

5,600+ $0.9228 -15%

8,000+ $0.9011 -17% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	12V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	10.5V
Voltage Dropout (Max)	1.5V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	72dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package	TO-263
