Name: AT5503MPTR-G1
Brand: Diodes Incorporated
SKU: AT5503MPTR-G1
Price: 0.23 USD
Availability: InStock

REF: AT5503MPTR-G1 Diodes Incorporated

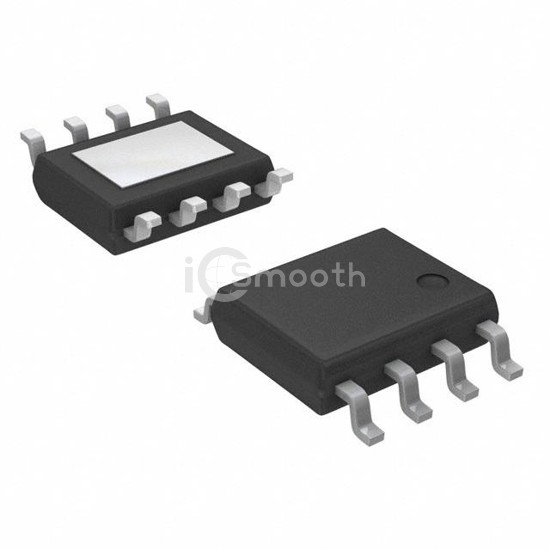

AT5503MPTR-G1

Diodes Incorporated

IC REG BUCK ADJUSTABLE 3A 8PSOP

AT5503MPTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Diodes Incorporated. IC REG BUCK ADJUSTABLE 3A 8PSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 6,507

Tiered Pricing USD

4,000+ $0.2250 —

8,000+ $0.2096 -7%

12,000+ $0.2018 -10%

20,000+ $0.1931 -14%

28,000+ $0.1880 -16%

40,000+ $0.1831 -19% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	16.2V
Current - Output	3A
Frequency - Switching	500kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	8-PSOP
