AP7361C-25SP-13

In Stock: 2,172

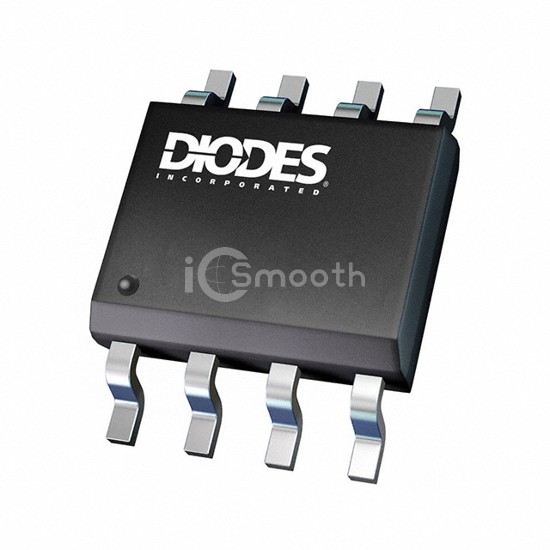

AP7361C-25SP-13 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP7361C-25SP-13 Diodes Incorporated
AP7361C-25SP-13

Diodes Incorporated

IC REG LINEAR 2.5V 1A 8SO

AP7361C-25SP-13 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.5V 1A 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 2,172

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)6V
Voltage - Output (Min/Fixed)2.5V
Voltage - Output (Max)-
Voltage Dropout (Max)0.44V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)80 µA
Current - Supply (Max)-
PSRR75dB ~ 55dB (1kHz ~ 10kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
