Name: AP7345D-285285RH4-7
Brand: Diodes Incorporated
SKU: AP7345D-285285RH4-7
Price: 0.07 USD
Availability: InStock

REF: AP7345D-285285RH4-7 Diodes Incorporated

AP7345D-285285RH4-7

Diodes Incorporated

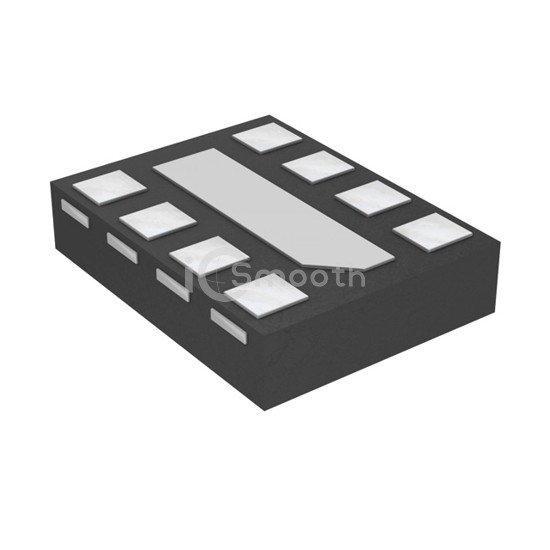

IC REG LIN 2.85/2.85V 300MA 8DFN

AP7345D-285285RH4-7 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LIN 2.85/2.85V 300MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-XFDFN Exposed Pad, current - supply (max) 70 µA.

Datasheet Request a Quote

In Stock: 6,564

Tiered Pricing USD

5,000+ $0.0703 —

10,000+ $0.0683 -3%

15,000+ $0.0672 -4%

25,000+ $0.0661 -6%

35,000+ $0.0655 -7%

50,000+ $0.0648 -8%

125,000+ $0.0635 -10% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.85V, 2.85V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.3V @ 300mA, 0.3V @ 300mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	140 µA
Current - Supply (Max)	70 µA
PSRR	75dB (1kHz)
Control Features	Current Limit, Enable
Protection Features	Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-XFDFN Exposed Pad
Supplier Device Package	X2-DFN1612-8
