AP7345D-1828RH4-7

In Stock: 2,458

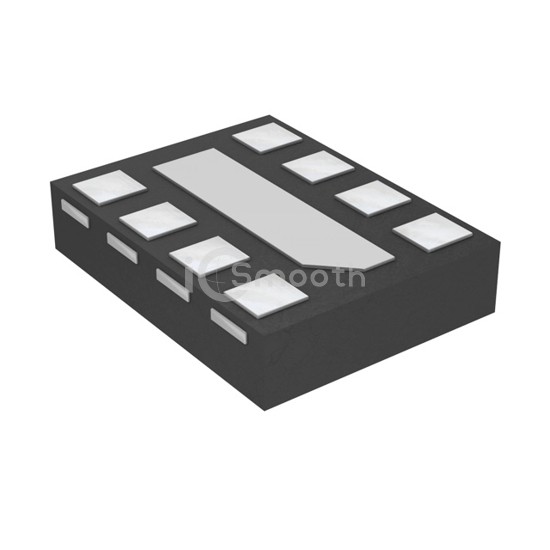

AP7345D-1828RH4-7 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP7345D-1828RH4-7 Diodes Incorporated
AP7345D-1828RH4-7

Diodes Incorporated

IC REG LIN 1.8V/2.8V 300MA 8DFN

AP7345D-1828RH4-7 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LIN 1.8V/2.8V 300MA 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-XFDFN Exposed Pad, current - supply (max) 70 µA.

Datasheet Request a Quote

In Stock: 2,458

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators2
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)1.8V, 2.8V
Voltage - Output (Max)-
Voltage Dropout (Max)0.39V @ 300mA, 0.3V @ 300mA
Current - Output300mA, 300mA
Current - Quiescent (Iq)140 µA
Current - Supply (Max)70 µA
PSRR75dB (1kHz)
Control FeaturesCurrent Limit, Enable
Protection FeaturesShort Circuit
Operating Temperature-40°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case8-XFDFN Exposed Pad
Supplier Device PackageX2-DFN1612-8
