AP7340-23FS4-7

In Stock: 8,484

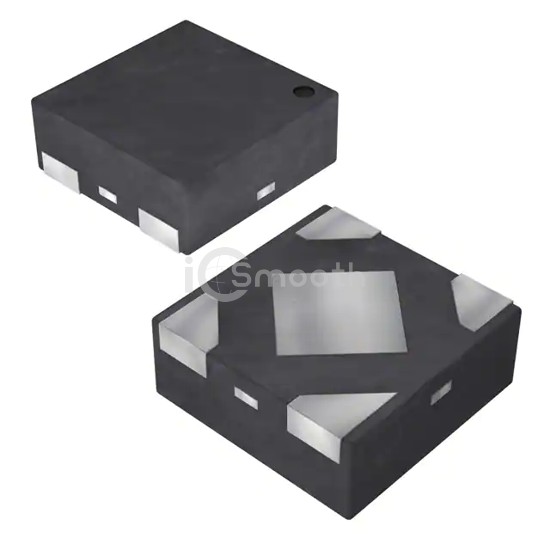

AP7340-23FS4-7 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP7340-23FS4-7 Diodes Incorporated
AP7340-23FS4-7

Diodes Incorporated

IC REG LINEAR 2.3V 150MA 4DFN

AP7340-23FS4-7 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.3V 150MA 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XDFN Exposed Pad, current - supply (max) 100 µA.

Datasheet Request a Quote

In Stock: 8,484

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)5.25V
Voltage - Output (Min/Fixed)2.3V
Voltage - Output (Max)-
Voltage Dropout (Max)0.36V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)50 µA
Current - Supply (Max)100 µA
PSRR75dB (1kHz)
Control FeaturesEnable
Protection FeaturesOver Current
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case4-XDFN Exposed Pad
Supplier Device PackageX2-DFN1010-4
