Name: AP7315-28FS4-7B
Brand: Diodes Incorporated
SKU: AP7315-28FS4-7B
Price: 0.35 USD
Availability: InStock

REF: AP7315-28FS4-7B Diodes Incorporated

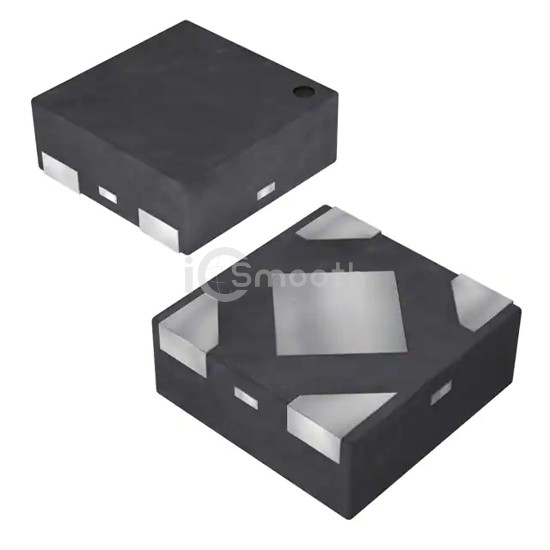

AP7315-28FS4-7B

Diodes Incorporated

IC REG LINEAR 2.8V 150MA 4DFN

AP7315-28FS4-7B is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.8V 150MA 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XDFN Exposed Pad, current - supply (max) 100 µA.

Datasheet Request a Quote

In Stock: 8,866

Tiered Pricing USD

1+ $0.3500 —

10+ $0.2390 -32%

25+ $0.2128 -39%

100+ $0.1834 -48%

250+ $0.1694 -52%

500+ $0.1610 -54%

1,000+ $0.1540 -56%

2,500+ $0.1467 -58%

5,000+ $0.1423 -59% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.29V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	60 µA
Current - Supply (Max)	100 µA
PSRR	75dB (1kHz)
Control Features	-
Protection Features	Over Current
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	X2-DFN1010-4
