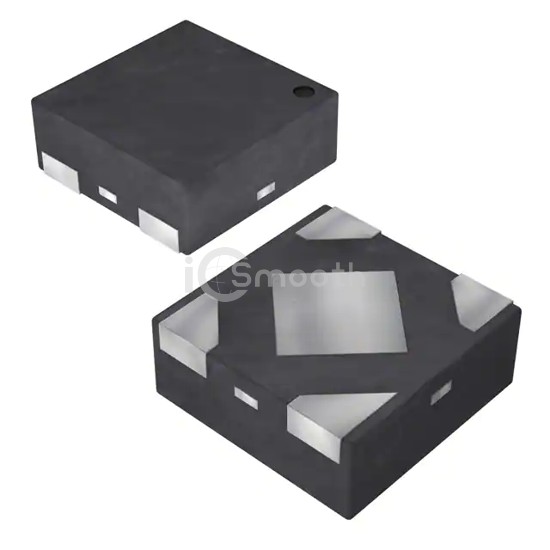

Name: AP7315-285FS4-7B
Brand: Diodes Incorporated
SKU: AP7315-285FS4-7B
Price: 0.14 USD
Availability: InStock

REF: AP7315-285FS4-7B Diodes Incorporated

AP7315-285FS4-7B

Diodes Incorporated

IC REG LINEAR 2.85V 150MA 4DFN

AP7315-285FS4-7B is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.85V 150MA 4DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XDFN Exposed Pad, current - supply (max) 100 µA.

Datasheet Request a Quote

In Stock: 3,097

Tiered Pricing USD

10,000+ $0.1386 —

20,000+ $0.1357 -2%

30,000+ $0.1342 -3%

50,000+ $0.1325 -4%

70,000+ $0.1315 -5% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.25V
Voltage - Output (Min/Fixed)	2.85V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.29V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	60 µA
Current - Supply (Max)	100 µA
PSRR	75dB (1kHz)
Control Features	-
Protection Features	Over Current
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	4-XDFN Exposed Pad
Supplier Device Package	X2-DFN1010-4
