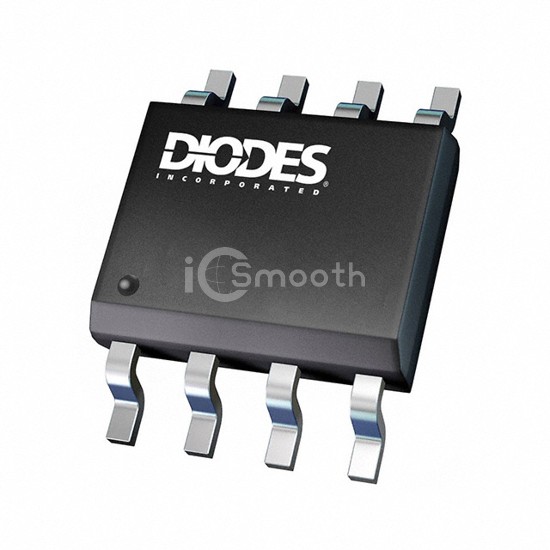

AP7176BSP-13

In Stock: 3,461
AP7176BSP-13 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP7176BSP-13 Diodes Incorporated
AP7176BSP-13

Diodes Incorporated

IC REG LINEAR POS ADJ 3A 8SO

AP7176BSP-13 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 3A 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 3,461

Tiered Pricing USD
1+ $0.4900 —
10+ $0.3460 -29%
25+ $0.3088 -37%
100+ $0.2683 -45%
250+ $0.2489 -49%
500+ $0.2373 -52%
1,000+ $0.2277 -54% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)3.65V
Voltage - Output (Min/Fixed)0.8V
Voltage - Output (Max)3.12V
Voltage Dropout (Max)0.53V @ 3A
Current - Output3A
Current - Quiescent (Iq)1.5 mA
Current - Supply (Max)-
PSRR-
Control FeaturesEnable, Power Good
Protection FeaturesOver Current, Over Temperature, Power On Reset (POR), Short Circuit, Soft Start
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
