Name: AP7175SP-13
Brand: Diodes Incorporated
SKU: AP7175SP-13
Price: 0.44 USD
Availability: InStock

REF: AP7175SP-13 Diodes Incorporated

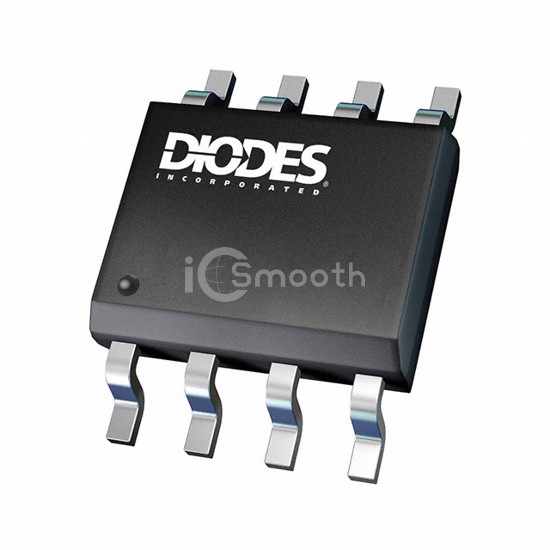

AP7175SP-13

IC REG LINEAR POS ADJ 3A 8SO

AP7175SP-13 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 3A 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 8,916

Tiered Pricing USD

2,500+ $0.4429 —

5,000+ $0.4148 -6%

7,500+ $0.4007 -10%

12,500+ $0.3849 -13%

17,500+ $0.3756 -15%

25,000+ $0.3667 -17% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	3.65V
Voltage - Output (Min/Fixed)	0.8V
Voltage - Output (Max)	3.23V
Voltage Dropout (Max)	0.42V @ 3A
Current - Output	3A

Current - Quiescent (Iq)	1.5 mA
Current - Supply (Max)	-
PSRR	-
Control Features	Enable, Power Good
Protection Features	Over Current, Over Temperature, Power On Reset (POR), Short Circuit, Soft Start
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	8-SO-EP
