Name: AP6503SP-13
Brand: Diodes Incorporated
SKU: AP6503SP-13
Price: 1.23 USD
Availability: InStock

REF: AP6503SP-13 Diodes Incorporated

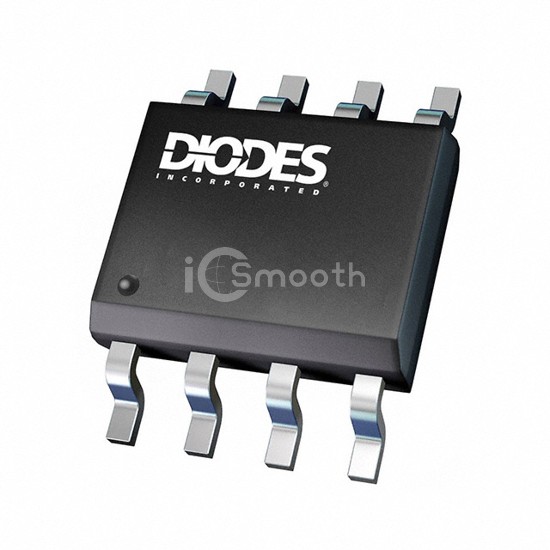

AP6503SP-13

IC REG BUCK ADJUSTABLE 3A 8SO

AP6503SP-13 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Diodes Incorporated. IC REG BUCK ADJUSTABLE 3A 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 2,554

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.7V
Voltage - Input (Max)	23V
Voltage - Output (Min/Fixed)	0.925V

Voltage - Output (Max)	20V
Current - Output	3A
Frequency - Switching	340kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	8-SO-EP
