AP3983BMTR-G1

In Stock: 1,339

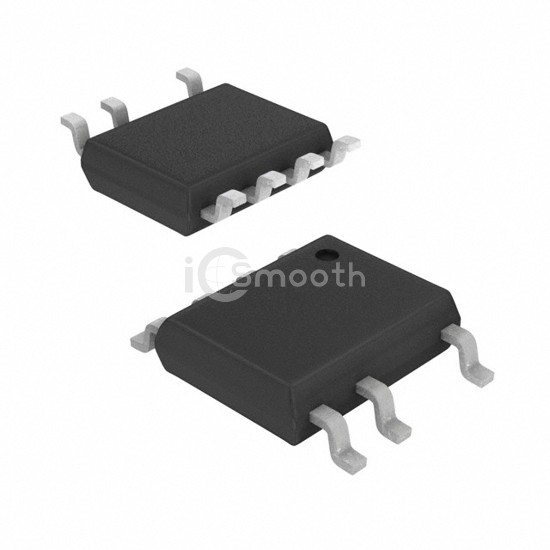

AP3983BMTR-G1 - Diodes Incorporated - PMIC - AC DC Converters, Offline Switchers
REF: AP3983BMTR-G1 Diodes Incorporated
AP3983BMTR-G1

Diodes Incorporated

IC OFFLINE SWITCH FLYBACK 7SO

AP3983BMTR-G1 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 7SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 6.82V ~ 25V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.

Datasheet Request a Quote

In Stock: 1,339

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown650V
TopologyFlyback
Voltage - Start Up15.5 V
Voltage - Supply (Vcc/Vdd)6.82V ~ 25V
Duty Cycle-
Frequency - Switching65kHz
Power (Watts)6 W
Fault ProtectionOver Temperature, Over Voltage, Short Circuit
Control Features-
Operating Temperature-40°C ~ 105°C (TA)
Package / Case8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package7-SO
Mounting TypeSurface Mount
