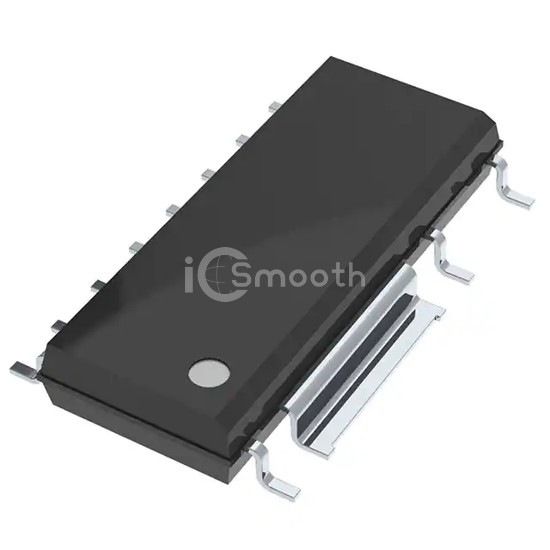

AP39303S16-13

In Stock: 7,894
AP39303S16-13 - Diodes Incorporated - PMIC - AC DC Converters, Offline Switchers
REF: AP39303S16-13 Diodes Incorporated
AP39303S16-13

Diodes Incorporated

IC OFFLINE SWITCH FLYBACK 16HSOP

AP39303S16-13 is a PMIC - AC DC Converters, Offline Switchers manufactured by Diodes Incorporated. IC OFFLINE SWITCH FLYBACK 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 28V, package / case 16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads.

Datasheet Request a Quote

In Stock: 7,894

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up15.8 V
Voltage - Supply (Vcc/Vdd)10V ~ 28V
Duty Cycle-
Frequency - Switching24kHz ~ 120kHz
Power (Watts)-
Fault ProtectionCurrent Limiting, Over Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-40°C ~ 85°C (TA)
Package / Case16-SOIC (0.154", 3.90mm Width), 12 Leads, Fused Leads
Supplier Device Package16-HSOP
Mounting TypeSurface Mount
