Name: AP3503FMPTR-G1
Brand: Diodes Incorporated
SKU: AP3503FMPTR-G1
Availability: InStock

REF: AP3503FMPTR-G1 Diodes Incorporated

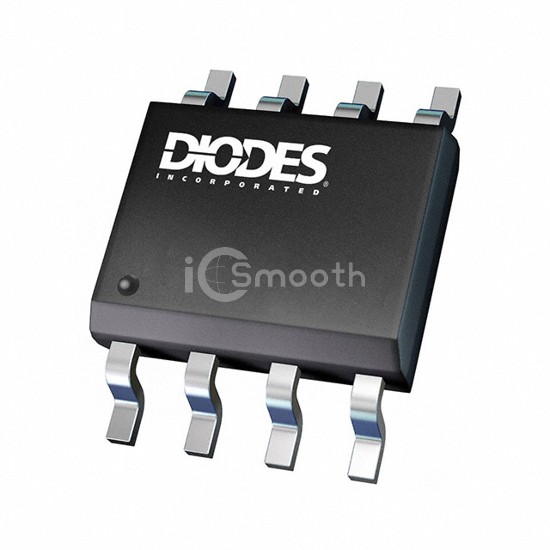

AP3503FMPTR-G1

IC REG BUCK ADJUSTABLE 3A 8SO

AP3503FMPTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Diodes Incorporated. IC REG BUCK ADJUSTABLE 3A 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - output 3A.

Datasheet Request a Quote

In Stock: 1,219

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Voltage - Output (Min/Fixed)	0.925V

Voltage - Output (Max)	16.2V
Current - Output	3A
Frequency - Switching	340kHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package	8-SO-EP
