Name: AP3102MTR-G1
Brand: Diodes Incorporated
SKU: AP3102MTR-G1
Availability: InStock

REF: AP3102MTR-G1 Diodes Incorporated

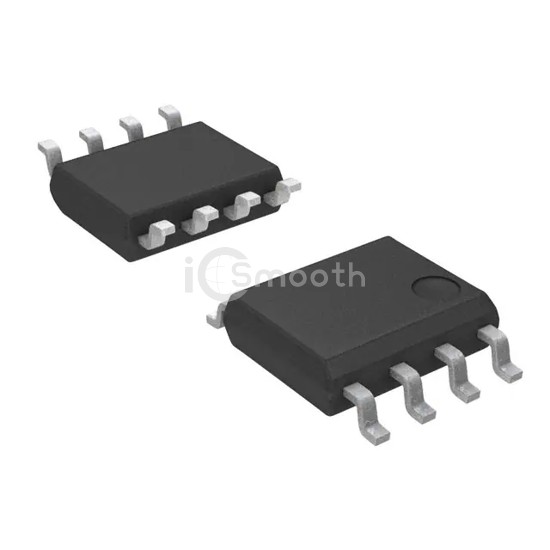

AP3102MTR-G1

IC PWM CONTROLLER SO

AP3102MTR-G1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. IC PWM CONTROLLER SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 10V ~ 25V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,422

Specifications

18 parameters

Product Status	Obsolete
Output Type	PWM Signal
Function	-
Output Configuration	Positive
Topology	-
Number of Outputs	1
Output Phases	-
Voltage - Supply (Vcc/Vdd)	10V ~ 25V
Frequency - Switching	65kHz

Duty Cycle (Max)	80%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Frequency Control
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
