Name: AP3101UMTR-E1
Brand: Diodes Incorporated
SKU: AP3101UMTR-E1
Availability: InStock

REF: AP3101UMTR-E1 Diodes Incorporated

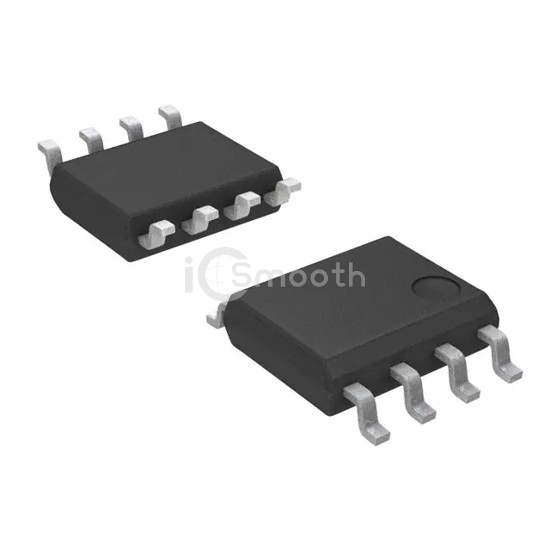

AP3101UMTR-E1

IC PWM CONTROLLER SO-8

AP3101UMTR-E1 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Diodes Incorporated. IC PWM CONTROLLER SO-8. Key specifications: operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 20V, package / case 8-SOIC (0.154", 3.90mm Width), output type PWM.

Request a Quote

In Stock: 5,362

Specifications

18 parameters

Product Status	Obsolete
Output Type	PWM
Function	-
Output Configuration	Positive
Topology	-
Number of Outputs	1
Output Phases	-
Voltage - Supply (Vcc/Vdd)	20V
Frequency - Switching	65kHz

Duty Cycle (Max)	90%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Frequency Control
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	-
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
