Name: AP2402A21DNTR-E1
Brand: Diodes Incorporated
SKU: AP2402A21DNTR-E1
Availability: InStock

REF: AP2402A21DNTR-E1 Diodes Incorporated

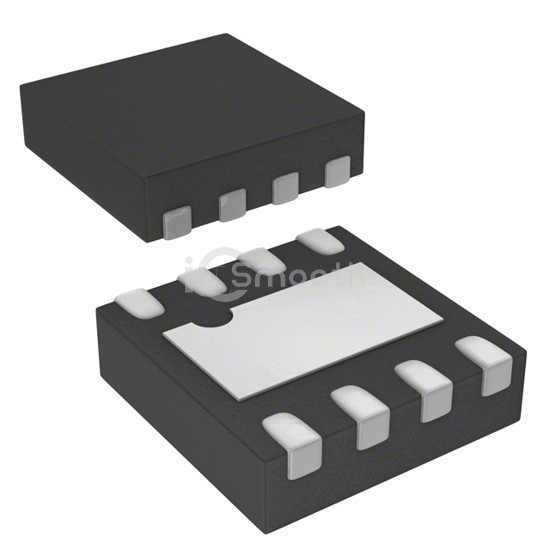

AP2402A21DNTR-E1

IC REG LINEAR 2.5V/1.8V 8DFN

AP2402A21DNTR-E1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.5V/1.8V 8DFN. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 60°C, package / case 8-WFDFN Exposed Pad, current - output 300mA, 300mA.

Request a Quote

In Stock: 5,318

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.5V, 1.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.08V @ 100mA, 0.12V @ 100mA
Current - Output	300mA, 300mA

Current - Quiescent (Iq)	90 µA
Current - Supply (Max)	-
PSRR	70dB (1kHz)
Control Features	Enable, Shutdown
Protection Features	Over Current, Over Temperature
Operating Temperature	-20°C ~ 60°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-DFN (2x2)
