AP2318ADN-ADJTRG1

In Stock: 1,143

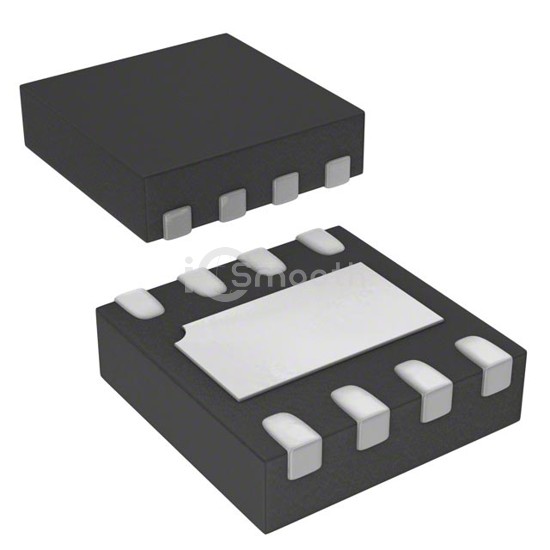

AP2318ADN-ADJTRG1 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP2318ADN-ADJTRG1 Diodes Incorporated
AP2318ADN-ADJTRG1

Diodes Incorporated

IC REG LINEAR POS ADJ 1A 8DFN

AP2318ADN-ADJTRG1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 1A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WDFN Exposed Pad, current - output 1A.

Datasheet Request a Quote

In Stock: 1,143

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)12V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)11.5V
Voltage Dropout (Max)0.5V @ 1A (Typ)
Current - Output1A
Current - Quiescent (Iq)250 µA
Current - Supply (Max)-
PSRR-
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature, Over Voltage
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-DFN (3x3)
