AP2204MP-ADJTRG1

In Stock: 9,711

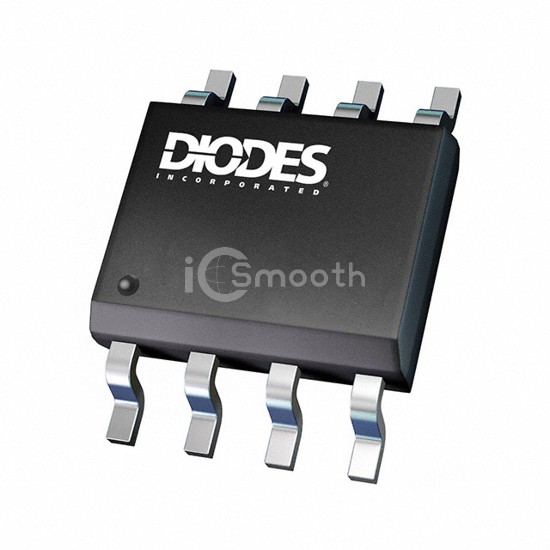

AP2204MP-ADJTRG1 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP2204MP-ADJTRG1 Diodes Incorporated
AP2204MP-ADJTRG1

Diodes Incorporated

IC REG LINEAR POS ADJ 150MA 8SO

AP2204MP-ADJTRG1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 150MA 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 8-SOIC (0.154", 3.90mm Width) Exposed Pad, current - supply (max) 2.5 mA.

Datasheet Request a Quote

In Stock: 9,711

Specifications

18 parameters
Product StatusLast Time Buy
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)24V
Voltage - Output (Min/Fixed)1.24V
Voltage - Output (Max)22V
Voltage Dropout (Max)0.5V @ 150mA
Current - Output150mA
Current - Quiescent (Iq)50 µA
Current - Supply (Max)2.5 mA
PSRR60dB (100Hz ~ 1kHz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package8-SO-EP
