Name: AP2114S-3.3TRG1
Brand: Diodes Incorporated
SKU: AP2114S-3.3TRG1
Price: 0.46 USD
Availability: InStock

REF: AP2114S-3.3TRG1 Diodes Incorporated

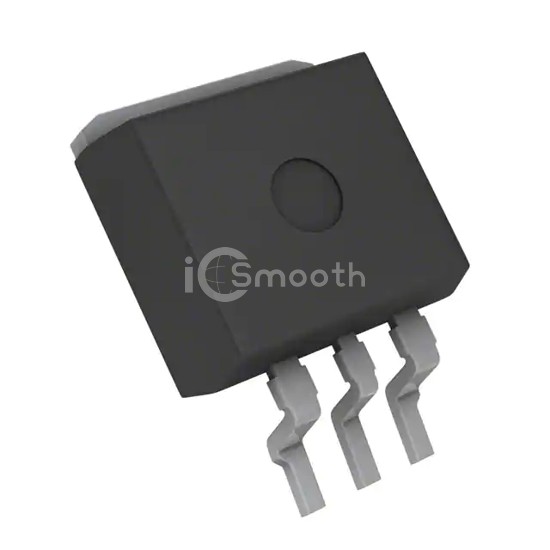

AP2114S-3.3TRG1

Diodes Incorporated

IC REG LINEAR 3.3V 1A TO263

AP2114S-3.3TRG1 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 3.3V 1A TO263. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-263-4, D²Pak (3 Leads + Tab), TO-263AA, current - output 1A.

Datasheet Request a Quote

In Stock: 3,407

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.75V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	90 µA
Current - Supply (Max)	-
PSRR	65dB (100Hz ~ 1kHz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
Supplier Device Package	TO-263
