Name: AP130-15RL-7
Brand: Diodes Incorporated
SKU: AP130-15RL-7
Availability: InStock

REF: AP130-15RL-7 Diodes Incorporated

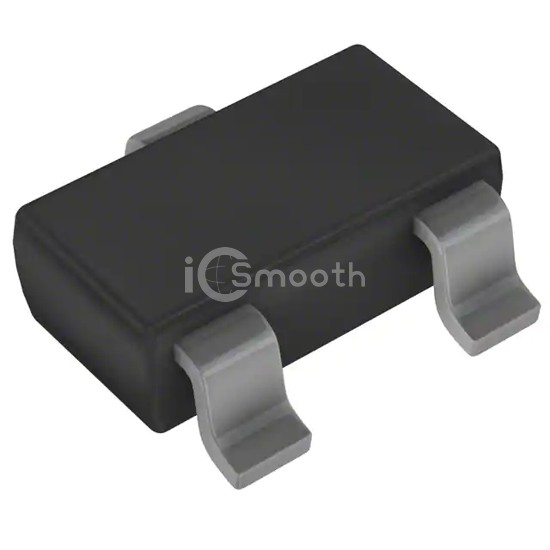

AP130-15RL-7

IC REG LINEAR 1.5V 300MA SC59

AP130-15RL-7 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.5V 300MA SC59. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case TO-236-3, SC-59, SOT-23-3, current - output 300mA.

Datasheet Request a Quote

In Stock: 7,743

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	-
PSRR	58dB (100Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SC-59R
