Name: AP130-15RG-7
Brand: Diodes Incorporated
SKU: AP130-15RG-7
Price: 0.28 USD
Availability: InStock

REF: AP130-15RG-7 Diodes Incorporated

AP130-15RG-7

Diodes Incorporated

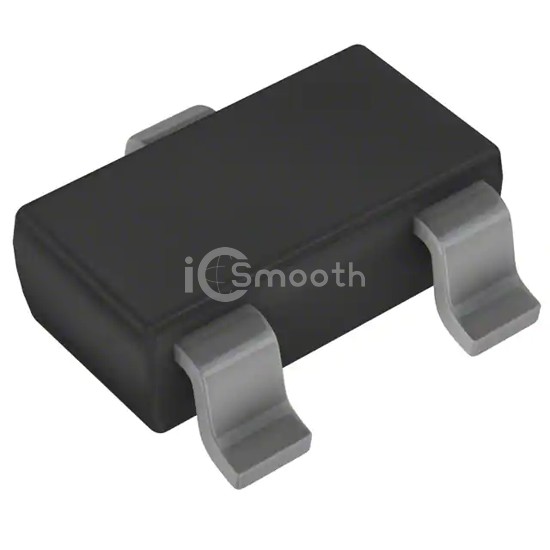

IC REG LINEAR 1.5V 300MA SC59R

AP130-15RG-7 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.5V 300MA SC59R. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case TO-236-3, SC-59, SOT-23-3, current - output 300mA.

Datasheet Request a Quote

In Stock: 5,151

Tiered Pricing USD

3,000+ $0.2846 —

6,000+ $0.2773 -3%

9,000+ $0.2736 -4%

15,000+ $0.2696 -5%

21,000+ $0.2672 -6%

30,000+ $0.2649 -7% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.5V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	100 µA
Current - Supply (Max)	-
PSRR	58dB (100Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SC-59R
