Name: AP1186T5-25G-U
Brand: Diodes Incorporated
SKU: AP1186T5-25G-U
Price: 1.02 USD
Availability: InStock

REF: AP1186T5-25G-U Diodes Incorporated

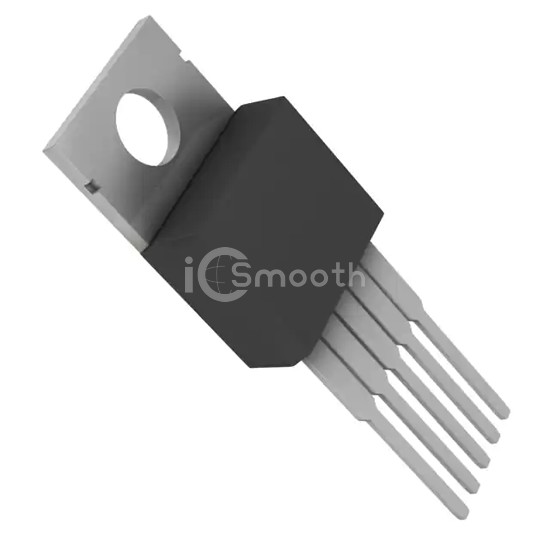

AP1186T5-25G-U

Diodes Incorporated

IC REG LINEAR 2.5V 1.5A TO220-5

AP1186T5-25G-U is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 2.5V 1.5A TO220-5. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 150°C (TJ), package / case TO-220-5, current - supply (max) 150 µA.

Datasheet Request a Quote

In Stock: 5,666

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.38V @ 1.5A
Current - Output	1.5A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	150 µA
PSRR	70dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-5
Supplier Device Package	TO-220-5
