Name: AP1184K5-L-U
Brand: Diodes Incorporated
SKU: AP1184K5-L-U
Price: 1.43 USD
Availability: InStock

REF: AP1184K5-L-U Diodes Incorporated

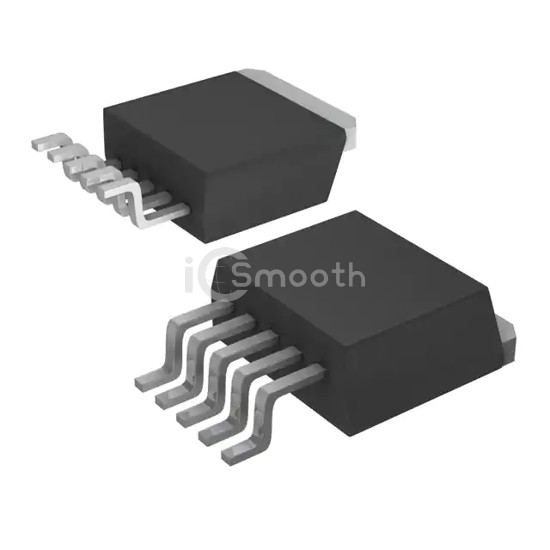

AP1184K5-L-U

Diodes Incorporated

IC REG LINEAR POS ADJ 4A TO263-5

AP1184K5-L-U is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR POS ADJ 4A TO263-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - supply (max) 70 mA.

Datasheet Request a Quote

In Stock: 3,587

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	15.5V
Voltage Dropout (Max)	0.85V @ 4A
Current - Output	4A

Current - Quiescent (Iq)	25 mA
Current - Supply (Max)	70 mA
PSRR	70dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	0°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	TO-263-5
