AP1119Y15L-13

In Stock: 8,658

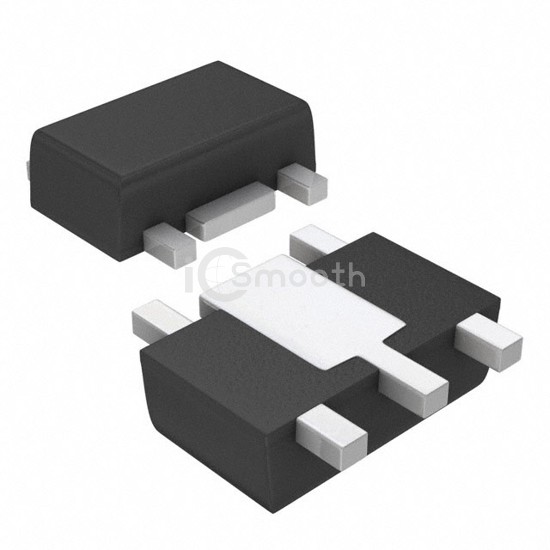

AP1119Y15L-13 - Diodes Incorporated - PMIC - Voltage Regulators - Linear
REF: AP1119Y15L-13 Diodes Incorporated
AP1119Y15L-13

Diodes Incorporated

IC REG LINEAR 1.5V 500MA SOT89-5

AP1119Y15L-13 is a PMIC - Voltage Regulators - Linear manufactured by Diodes Incorporated. IC REG LINEAR 1.5V 500MA SOT89-5. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), package / case SOT-89-5/6, current - output 500mA.

Datasheet Request a Quote

In Stock: 8,658

Specifications

18 parameters
Product StatusObsolete
Output ConfigurationPositive
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)18V
Voltage - Output (Min/Fixed)1.5V
Voltage - Output (Max)-
Voltage Dropout (Max)1.3V @ 500mA
Current - Output500mA
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR60dB (120Hz)
Control FeaturesEnable
Protection FeaturesOver Current, Over Temperature
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOT-89-5/6
Supplier Device PackageSOT-89-5
