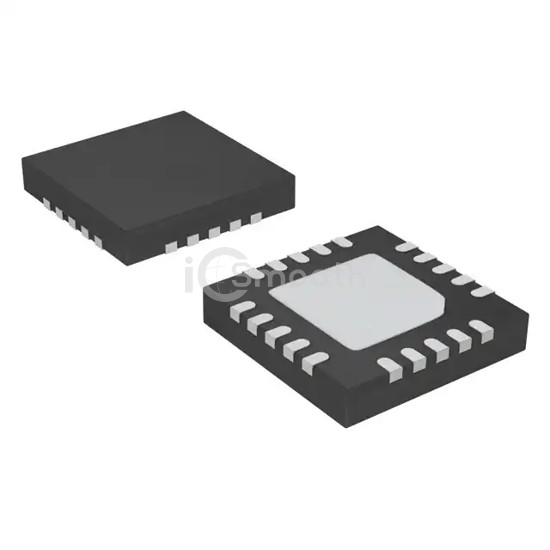

Name: AL3158FSG-7
Brand: Diodes Incorporated
SKU: AL3158FSG-7
Price: 0.35 USD
Availability: InStock

REF: AL3158FSG-7 Diodes Incorporated

AL3158FSG-7

IC LED DRVR RGLTR PWM 30MA 20QFN

AL3158FSG-7 is a PMIC - LED Drivers manufactured by Diodes Incorporated. IC LED DRVR RGLTR PWM 30MA 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-UFQFN Exposed Pad, current - output / channel 30mA.

Datasheet Request a Quote

In Stock: 7,207

Tiered Pricing USD

3,000+ $0.3484 —

6,000+ $0.3258 -6%

9,000+ $0.3144 -10%

15,000+ $0.3016 -13%

21,000+ $0.2941 -16%

30,000+ $0.2869 -18% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Regulator
Topology	Switched Capacitor (Charge Pump)
Internal Switch(s)	Yes
Number of Outputs	9
Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V
Voltage - Output	-

Current - Output / Channel	30mA
Frequency	1.2MHz
Dimming	PWM
Applications	Backlight
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	20-UFQFN Exposed Pad
Supplier Device Package	QFN3030-20
