Name: AH8503-FDC-7
Brand: Diodes Incorporated
SKU: AH8503-FDC-7
Price: 0.92 USD
Availability: InStock

REF: AH8503-FDC-7 Diodes Incorporated

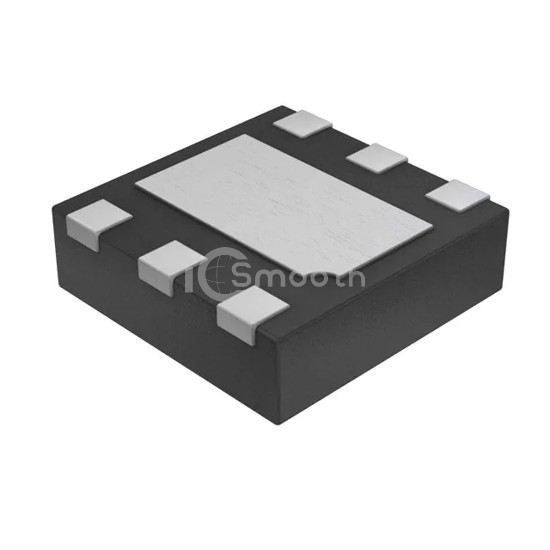

AH8503-FDC-7

Diodes Incorporated

SENSOR HALL ANALOG 6UDFN

AH8503-FDC-7 is a Magnetic Sensors - Linear, Compass (ICs) manufactured by Diodes Incorporated. SENSOR HALL ANALOG 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.6V ~ 3.6V, package / case 6-UDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,321

Tiered Pricing USD

1+ $0.9200 —

5+ $0.8040 -13%

10+ $0.7640 -17%

25+ $0.7152 -22%

50+ $0.6818 -26%

100+ $0.6513 -29%

500+ $0.5902 -36%

1,000+ $0.5674 -38% BEST

Specifications

15 parameters

Product Status	Active
Technology	Hall Effect
Axis	Single
Output Type	Analog Voltage
Sensing Range	±40mT
Voltage - Supply	1.6V ~ 3.6V
Current - Supply (Max)	1.5mA
Current - Output (Max)	10mA

Resolution	8 b
Bandwidth	-
Operating Temperature	-40°C ~ 85°C (TA)
Features	Sleep Mode
Supplier Device Package	U-DFN2020-6 (Type C)
Mounting Type	Surface Mount
Package / Case	6-UDFN Exposed Pad
