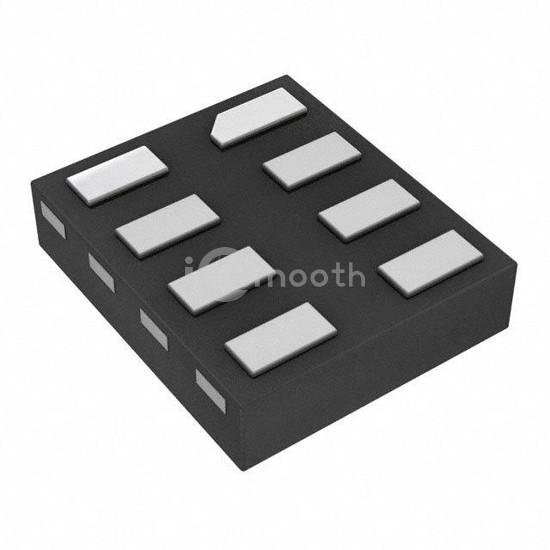

Name: 74LVC2G38RA3-7
Brand: Diodes Incorporated
SKU: 74LVC2G38RA3-7
Price: 0.05 USD
Availability: InStock

REF: 74LVC2G38RA3-7 Diodes Incorporated

74LVC2G38RA3-7

Diodes Incorporated

IC GATE NAND 2CH 4IN DFN1210-8

74LVC2G38RA3-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE NAND 2CH 4IN DFN1210-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 1.65V ~ 5.5V, package / case 8-XFDFN.

Datasheet Request a Quote

In Stock: 6,506

Tiered Pricing USD

5,000+ $0.0547 —

10,000+ $0.0531 -3%

15,000+ $0.0522 -5%

25,000+ $0.0513 -6%

35,000+ $0.0508 -7%

50,000+ $0.0503 -8%

125,000+ $0.0492 -10% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	NAND Gate
Number of Circuits	2
Number of Inputs	4
Features	Open Drain
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10 µA
Current - Output High, Low	-, 32mA

Logic Level - Low	0.1V ~ 0.8V
Logic Level - High	-
Max Propagation Delay @ V, Max CL	3.3ns @ 3.3V, 50pF
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1210-8
Package / Case	8-XFDFN
