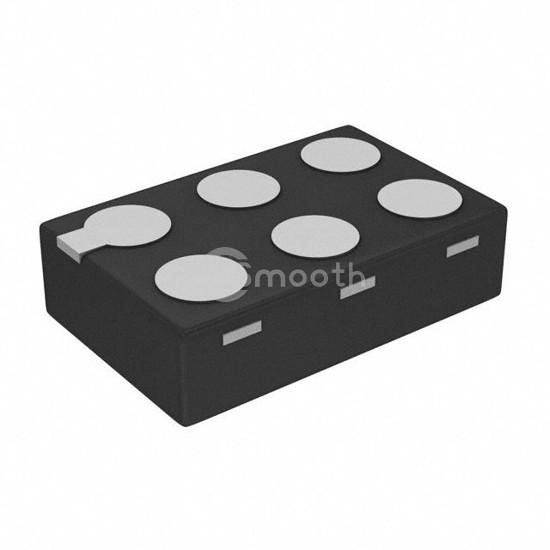

Name: 74LVC2G14FX4-7
Brand: Diodes Incorporated
SKU: 74LVC2G14FX4-7
Price: 0.21 USD
Availability: InStock

REF: 74LVC2G14FX4-7 Diodes Incorporated

74LVC2G14FX4-7

Diodes Incorporated

IC INVERTER 2CH 2-INP DFN1409-6

74LVC2G14FX4-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC INVERTER 2CH 2-INP DFN1409-6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 6-XFDFN.

Datasheet Request a Quote

In Stock: 7,699

Tiered Pricing USD

1+ $0.2100 —

10+ $0.1410 -33%

25+ $0.1240 -41%

100+ $0.1057 -50%

250+ $0.0970 -54%

500+ $0.0918 -56%

1,000+ $0.0875 -58%

2,500+ $0.0829 -61% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	Inverter
Number of Circuits	2
Number of Inputs	2
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	40 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.25V ~ 1.2V
Logic Level - High	1.5V ~ 3.6V
Max Propagation Delay @ V, Max CL	4.7ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1409-6
Package / Case	6-XFDFN
