Name: 74LVC1G86SE-7
Brand: Diodes Incorporated
SKU: 74LVC1G86SE-7
Price: 0.10 USD
Availability: InStock

REF: 74LVC1G86SE-7 Diodes Incorporated

74LVC1G86SE-7

Diodes Incorporated

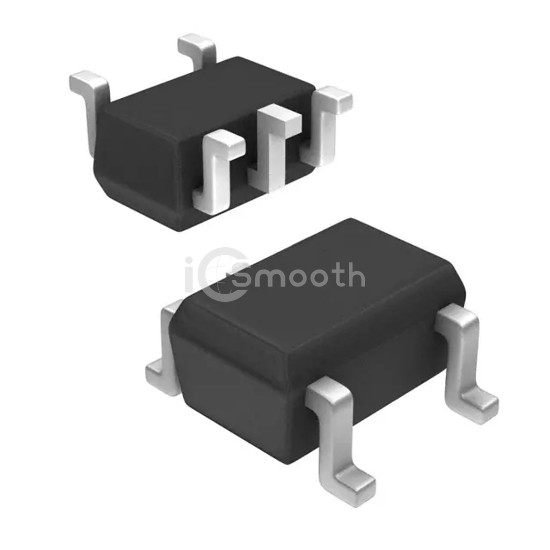

IC GATE XOR 1CH 2-INP SOT353

74LVC1G86SE-7 is a Logic - Gates and Inverters manufactured by Diodes Incorporated. IC GATE XOR 1CH 2-INP SOT353. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.65V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 3,646

Tiered Pricing USD

1+ $0.1000 —

10+ $0.0670 -33%

25+ $0.0580 -42%

100+ $0.0488 -51%

250+ $0.0444 -56%

500+ $0.0417 -58%

1,000+ $0.0395 -61% BEST

Specifications

15 parameters

Product Status	Active
Logic Type	XOR (Exclusive OR)
Number of Circuits	1
Number of Inputs	2
Features	-
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	200 µA
Current - Output High, Low	32mA, 32mA

Logic Level - Low	0.7V ~ 0.8V
Logic Level - High	1.7V ~ 2V
Max Propagation Delay @ V, Max CL	4ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	SOT-353
Package / Case	5-TSSOP, SC-70-5, SOT-353
